Creative Technology Lasers - 405nm Laser Diode Spec Page.

simulated beam, actual beam is divergent prior to collimating lens, photo enlarged to show detail

405 nm Blue- Violet Laser Diodes

For 405-G-2 Lenses CLICK HERE

We stock 405nm diodes for various customer deamands. Farther down, you will find full production diodes from Japanese manufacturer's with Full Documentation.

We also carry Blue- Violet diodes for the budget- minded customer. Creative has enabled some of it's customers to enter new markets with our low cost 405nm diodes.
A few clients were previously blocked from low cost product development due to the higher costs of these didoes- especially when first introduced.
Powers up to 300mW CW, and a few customers operating up to 600mW+ ,
willing to sacrafice lifetimes for power.

With our knowledge of worldwide manufacturing of consumer electronics, includeing
Blu Ray devices, we can offer diodes of excellent quality at remarkable low prices.
We have teamed with huge volume buyers and pass savings on to our customers.
Many of these low cost diodes have no manufacturer's data sheet, but we have tested units and show our own data to back up our claims.

( Keep Scrolling Down )

New Diodes IN STOCK:
DL-405-PHR-60
60mW, CW Removed from NEW Equipment- LOW COST !

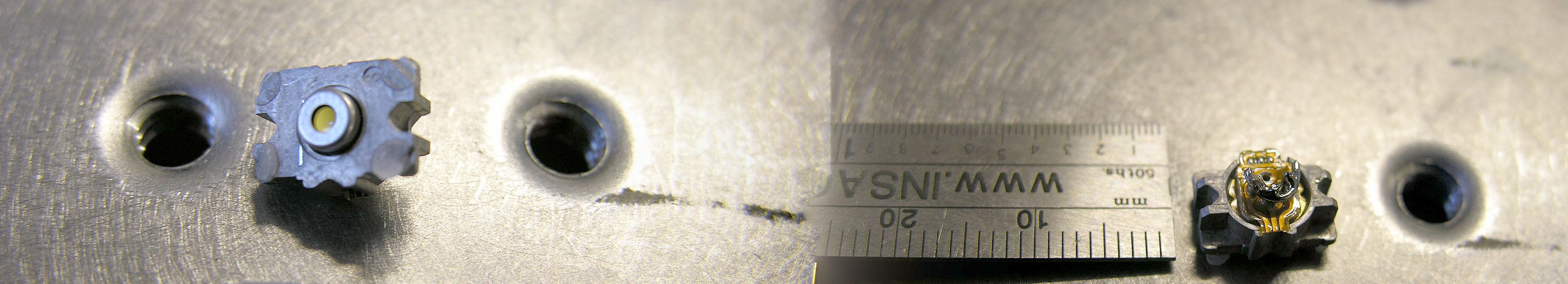

stitch photo of diode in mount (can be removed here). Shown front & rear

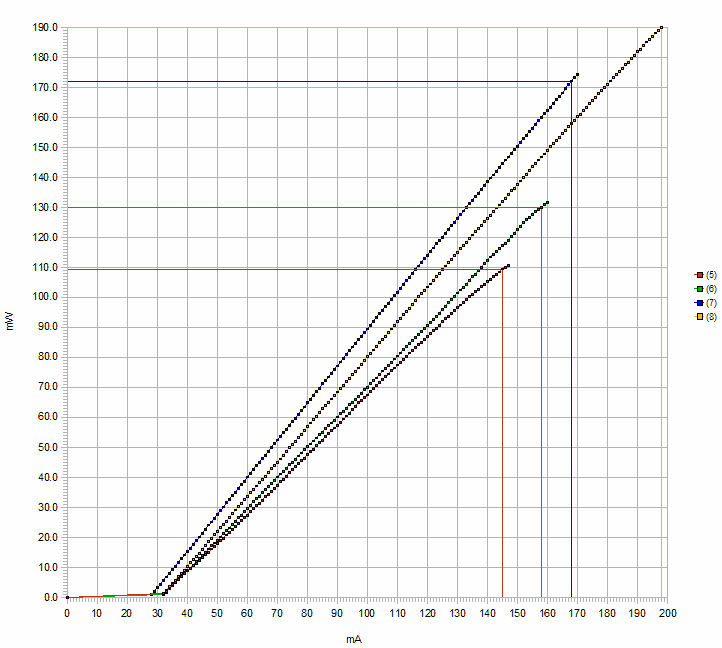

CLICK HERE for Power Graph Data (pushed to failure)

DL-405-150-SF
150 mW CW

DL-405-300-SJ
300 mW CW

( Keep Scrolling Down )

Still a few of these left...

DL-405-120-3
120 mW CW 405nm Laser Diode !
120 mW, 80 deg C Operating Temp.

click diode photo below for data for: DL-405-120-3

DL-405-S & DL-405-N
10 mW and 65 mW...

DL-405-S.xls
10 mW, 70 deg C Operating Temp.

DL-405-N.xls
65 mW, 80 deg C Operating Temp.

Call for current pricing.
( Keep Scrolling Down )
*******************************************************************
MITSUBISHI
specifications updated as parts mature

DATA SHEETS:
click Adobe® Icon to Download

Part #

ML320G-11

405 nm, 120mW

5.6mm can no photo diode
(3.8mm available as ML329G2-11 call for availability)

*******************************************************************
OPNEXT
specifications updated as parts mature

DATA SHEETS:
click Adobe® Icon to Download

Part #

HL40023MG

405 nm, 500mW

5.6mm can no photo diode
*******************************************************************

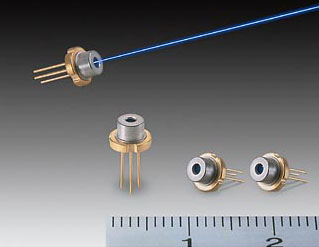

SANYO

see below

Stable, Low Noise Beam realized via ion implantation.
5.6 mm package
Low Threshold Current, 50 mA typical
Operating Temperature of 50 to 70 degrees C.
Powers of 5 mW, 10 mW 35 mW, & 60 mW CW
Suitable for many printing, biomedical, and industrila applications.
Most Now in Mass Production

specifications updated as parts mature

SANYO DATA SHEETS:
click Adobe® Icon to Download

Part # scroll down for increasing powers up to 85 mW.

DL-3146-151

405 nm, 5mW CW, 7 mW MAX

with monitor diode

DL-LS5024

405 nm, 10 mW

without monitor diode

DL-4146-301S

405 nm, 20mW CW

without monitor diode

DL-4146-101S

405 nm, 20 mW

with monitor diode

DL-5146-152

405 nm, 35 mW

with monitor diode

DL- LS 5017
405 nm, 60 mW CW, 65 mW MAX.

no monitor diode, floating pin-out (no case connection)
This full 7 page data sheet includes detailed electrical and optical characteristics, MTTF/ Lifetest data, spectrum, wavelength , operating current data, various distribution data (stats for LOT tests).

DL-7146-101S

405 nm, 85 mW CW

with monitor diode

Priced upon request.
Competetive pricing available with mass production.

Discontinued Models: (seen below for reference only)

DL-5146-251 Discontinued

405 nm, 35 mW
no monitor diode, case cathode

DL-5146-351 Discontinued

405 nm, 35mW

no monitor diode, floating pin-out (no case connection)

DL-6146-201 Discontinued

405 nm, 50 mW
no monitor diode, case cathode
