LASER66.com Logo   APC Modules Spec. Page

Now Available in 3.3 mm size !
Modules Utilizing our NEW APC Diodes
Built- In Drivers- Housing, Optics, & Diode: No Traditional External PCB Driver
see below

  • Driver Circuit in the Normal Diode Can.
  • Various sizes and Material (Brass & Plastic Optics/ Housing.
  • Stable Output Power over Wide Range of Input Voltages & Temperatures.
  • ESD Protection & Surge Protection Included
  • Pulsed Operation possible, 10KHz +
  • Output Power can be Factory  or User Set.
  • Low Cost

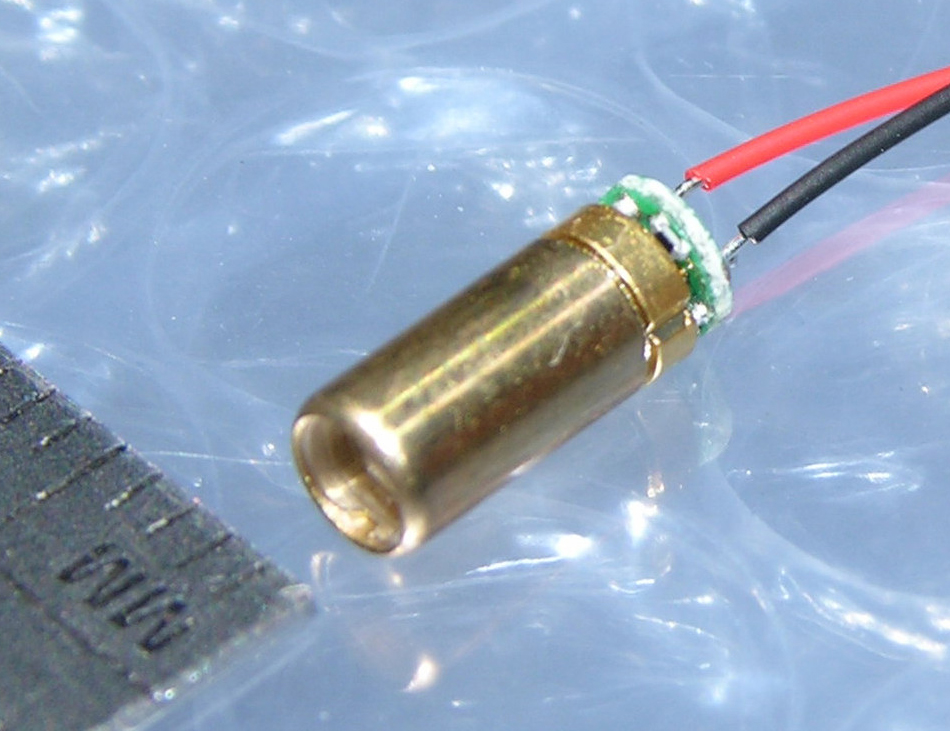

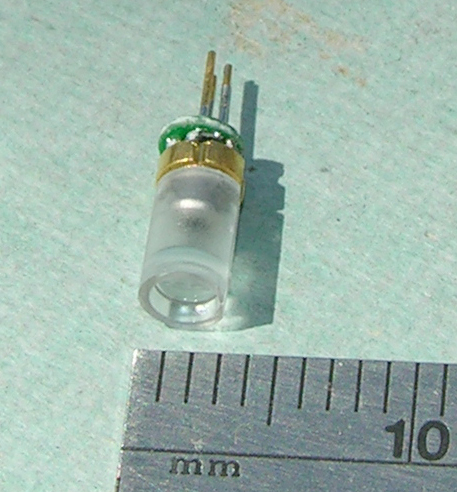

              3.3 mm diameter laser module                3.3mm laser module with plastic housing/ optic.
                                  3.3mm with brass housing                    Revolutionary one-piece housing/ optic in 3.3mm !

Photo of APC Laser ModulePhoto of APC modules utilizing integrated pastic optics housing
                           4mm diameter                               Revolutionary APC Module with one-piece housing/ optic




specifications updated as parts mature

DATA SHEETS:
click Adobe® Icon to Download

  650 nm:
 Part #
* most modules listed as FDA Class IIIa, Other powers available, including Class II and Class I.

LMAPCD- 650-07-C3-A
 650 nm, < 5mW, 3.3 mm Diameter Brass Housing, Yes, 3.3 mm diameter !

 650 nm, <5mWAcrobat Reader Icon



LMAPCD- 650-01-C3-A
 650 nm, < 5mW, 4 mm Diameter Brass Housing, 4 mm diameter.

 650 nm, <5mWAcrobat Reader Icon


 LMAPCD- 650-06-C3-A
 650 nm, < 5mW, 6.3 mm Diameter, Plastic Housing- Integrated Optics.

 650 nm, <5mWAcrobat Reader Icon



635 nm:  due soon

MORE COMING SOON
call for details now, we can email you any data sheet not already posted.

Priced upon request.
Competetive pricing available with mass production.

Files in .pdf
You must utilize Adobe® Reader® or other software to view the data sheet.
To download a FREE copy of Adobe® Reader®, click  logo below:





Adobe®, and Adobe® Reader® are registered trademarks of Adobe Systems Incorporated. All rights reserved.


Ordering
Format
LMAPCD- 650- 06- C3- A



Call / email with Ordering Details





This page last modified 8 August 2011
