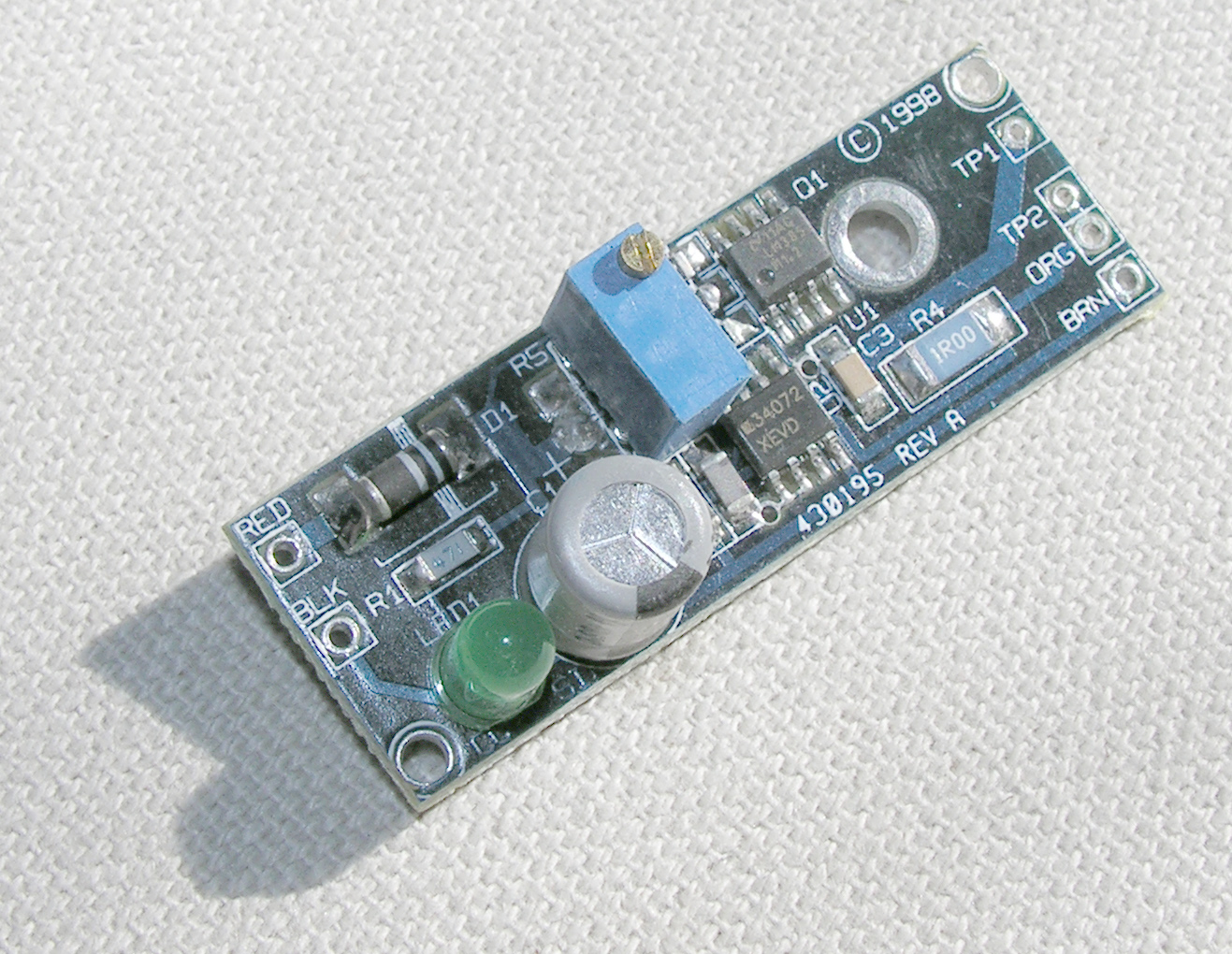

Direct Current Printed Circuit Board-2

(DCPCB2) Spec Page

General:

• This small driver board will drive many  laser diodes currently on the market as well as higher voltage diodes.

•  150 mA output version of the 1.5Amp DCPCB, see other spec page.

• 10 Turn Potentiometer for precision adjustment of current.
• Test Points for  monitoring of  actual Optput Current.

• Can be utilized to drive other loads including TE Coolers, Resistive heaters, etc.
• ~ 2" X 3/4 " with mounting holes.

• MADE IN USA


Files in .pdf
You must utilize Adobe® Reader® or other software to view the data sheet.
To download a FREE copy of Adobe® Reader®, click  logo below:


Adobe®, and Adobe® Reader® are registered trademarks of Adobe Systems Incorporated. All rights reserved.

BUY DCPCB2 NOW with Paypal LINK BELOW:
Add multiple lenses and/ or other items to cart.
No added ship fees for 10 or less items !

Add this item to your cart, buy multiple items, and return to shopping- all choices available.
