LASER66.com Logo        Diode Pumped Green (DPGL)
                                Spec Page

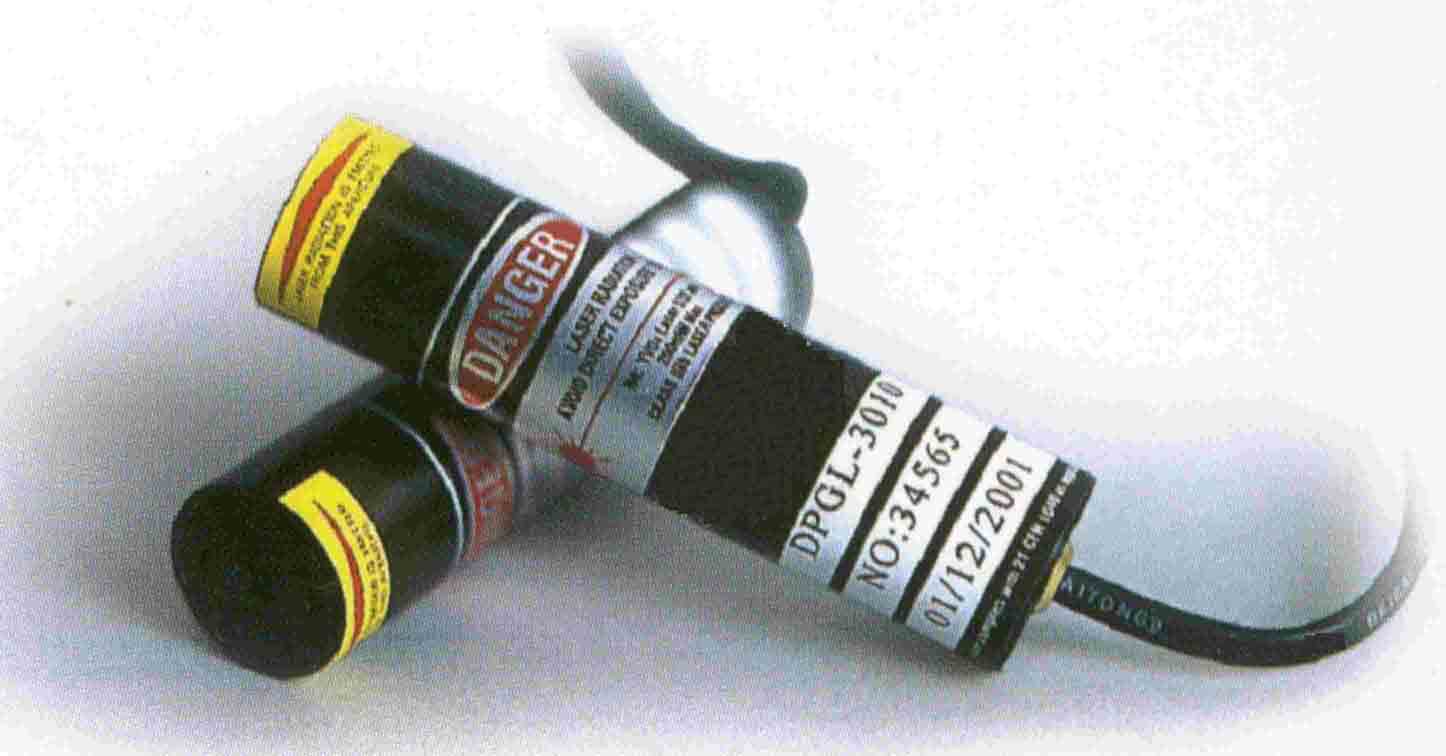

DPGL 3000 Series Green Laser Module

Previously Sold Under the CASIX name

     Note:
       These units are now DISCONTINUED..

    Model            Output Power

    DPGL- 3005                    5 mW

    DPGL- 3010                    10 mW

    DPGL- 3015                   15 mW

    DPGL- 3020                    20 mW


Available in OEM Versions and Now Fully Certified (FDA/ CDRH) Models




Princing: Please call for pricing information.










Performance Specification
 Item Parameter

Output Wavelength:
532 nm

Output Power:**
CW,5, 10, 15, or 20  mW

Beam Mode:
TEM00

Beam Diameter (1/e2):
< 1.0 mm

Beam Divergence (1/e2):
< 1.0 mrad

Power Stability:
< 150%

Line Width:
< 0.05 nm

Polarization:
>100:1

Modulation:
optional, up to 50 Khz.

 Operating Tempature:
15 - 30 deg. C

Dimensions of Laser Head:
25 mm or 20 mm dia. x 77 mm length
 25 mm new standard size
Expected Lifetime:
>5000 hrs.

Power Supply:
LDC-600 or DC PCB



*Other models available with up to 3 watts of green. Call for details.
**Please specify this value when ordering.


Ordering
Format
Please use the following format when ordering.


DPGL - 30XX        (where XX= output power)


For example, your order may look like this: DPGL 3010
