Diode Pumped Green (DPGL)
Driver Spec Page

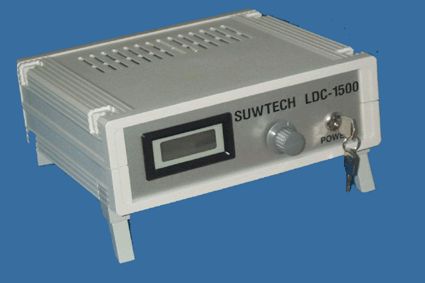

LDC- 1500 Power Supply

Note:
These are our NEW Units.

For Laser Heads:
DPGL- 1000 Series, DPGL- 2000 Series (up to 100 mW)
DPIR- 1000 Series, DPIR- 2000 Series( up to 300 mW)
and others

Included with Laser Head if FDA/ CDRH Complient Laser System is Ordered

Princing: Please call for pricing information.

Performance Specification

Item Parameter

LD Drive Current:

0 to 1.5 A, front panel adjustable

LD Drive Current Limit:

0.05 to 1.5 A, PCB trim potentiometer

MAX LD Voltage:

_{3.0 V}

LD Drive Current Noise:

< 25 uA (RMS)

LD Drive Current Stability:

< 100 ppm/ deg. C

External Modulation:

DC to 50 KHz.

Max. TEC Drive Current:

2.0A

Max. TEC Drive Voltage:

8.0 V

Short Term Temp. Stability:

< 0.002 deg. C, delta T = 1 deg. C

Long Term Temp. Stability:

< 0.02 deg. C, delta T = 50 deg. C

Temp. Sensor:

NTC Thermistor

Dimensions:

225 (W) X 72 (H) X 200 (D) mm

Input Supply:

100 ~ 240 VAC

Ordering
Format

Please use the following format when ordering.

LDC - 1500
