LASER66.com Logo                    P Series II and P Series III
                                 Compact OEM Green Diode Pumped Laser Module
                                   with Auto Power Control
                                           Spec Page

General:

  • Units are fully functional APC (Auto Power Control) modules, making these our smallest & least expensive green OEM laser modules.
  • Very compact, only 12 or 8 mm diameter.
  • Complete with Collimation Lens- Not a high divergence module.
  • APC utilizes GREEN Light Feedback
  • Complete with Driver PCB
  • Higher powers up to 80 mW available but Constant Current.
Pricing: Single item princing is given in the last row of the table, below. Call for volume discounts.

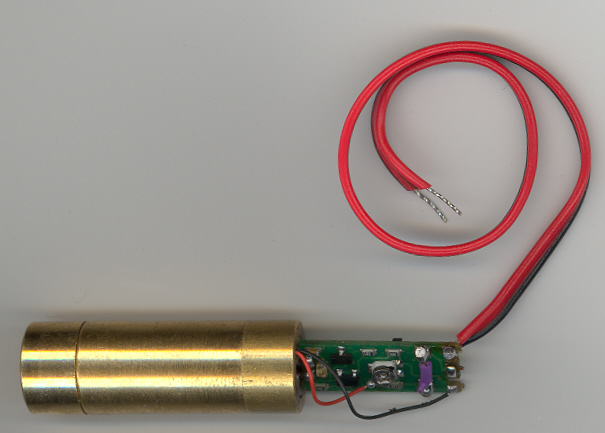

P SeriesII, 12mm diamter, with APC
P Series 2 Green Laser Module Photo

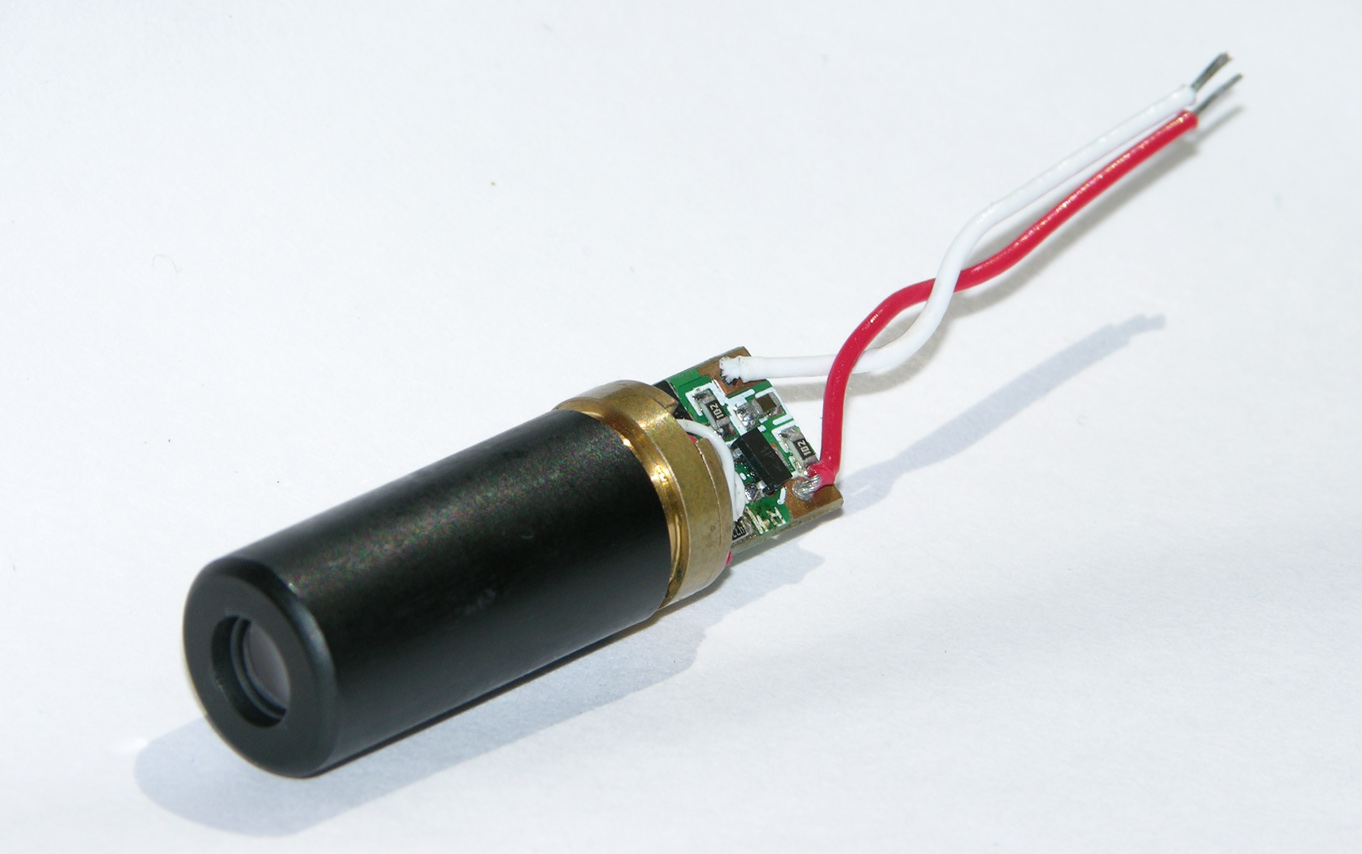

  P SeriesIII, 8 mm diamter with APC
8 mm diameter green laser module with APC



Note: Feedback wires !
Now at < 5 mW APC, lower power available, higher powers alos available.



P Series
PS - II
 P Series III
Wavelength:
532 nm
532 nm
Output Power:
< 5 mW, each measured
 < 5 mW< each measured
Beam Divergence:
1.2 mrad
 1.2 mrad
Beam Size:
1 mm
1 mm
Operating Temperature:
0 - 40 deg. C
 0 to 40 deg. C
Operating Voltage:
3V (pcb)
 3 V DC
Price:
$ 50
 $50


Ordering
Format
Please use the following format when ordering.


PSY - X , Y= II or III X = power level


For example, your order may look like this: PSIII-5
